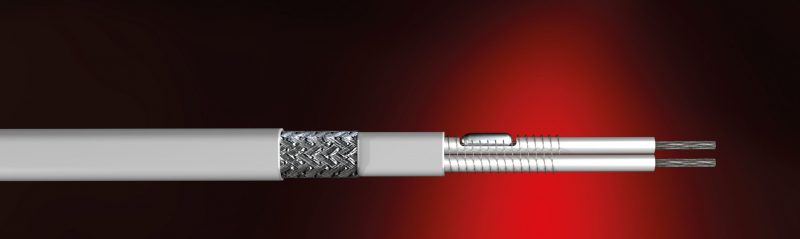

ELP/Si up to 200 °C

Applications

• Vessels, piping, valves
• Food processing industry
• Frost protection and temperature maintenance on pumps, etc.

Technical Information

• Insulation: Silicone
• Protective braid: Copper
• Outer jacket: Silicone
• Nominal temperature: 200 °C
• Moisture proof
• Bending radius, min.: 30 mm
• Bus wire cross section: 2 x 1.5 mm²
• Nominal voltage: 230 V AC/DC
• Installation temp., min.: -60 °C
• Start-up temp., min.: -60 °C
• Nominal output: 10 / 20 / 30 / 40 W/m

ELP/Si-F-B up to 200 °C

Applications

• Vessels, piping, valves
• Food processing industry
• Frost protection and temperature maintenance on pumps, etc.
• Filter heating systems

Technical Information

• Insulations: Silicone
• Protective braid: Copper/zinc
• Outer jacket: Silicone
• Nominal voltage: 230 V AC/DC or 400 V AC/DC
• Dimensions: 6.5 x 10.5 mm
• Permissible ambient temperature: -70…+200 °C
• Bending radius, min.: 30 mm
• Bus wire cross section: 2 mm²
• Installation temp., min.: -70 °C
• Start-up temp., min: -70 °C
• Nominal output: 20 / 30 / 40 W/m

ELP/Si-F-BOT up to 200 °C

Applications

• Vessels, piping, valves
• Food processing industry
• Frost protection and temperature maintenance on pumps, etc.
• Filter heating systems

Technical Information

• Insulations: Silicone
• Protective braid: Copper/zinc
• Outer jacket: Fluoropolymer
• Nominal voltage: 230 V AC/DC or 400 V AC/DC
• Dimensions: 7 x 10.5 mm
• Permissible ambient temperature: -70…+200 °C
• Bending radius, min.: 30 mm
• Bus wire cross section: 2 mm²
• Installation temp., min.: -70 °C
• Start-up temp., min: -70 °C
• Nominal output: 20 / 30 / 40 W/m

ELP/PFA up to 260 °C

Applications

• Vessels, piping, valves
• Building construction
• Food processing industry
• Paper industry
• Hazardous area applications

Technical Information

• Insulations: Fluoropolymer
• Protective braid: Nickel-plated copper
• Outer jacket: Fluoropolymer
• Nominal temperature: 260 °C
• Moisture proof
• Bending radius, min.: 25 mm
• Bus wire cross section: 2 x 1.5 mm²
• Nominal voltage: 230 V AC/DC
• Installation temp., min.: -45 °C
• Start-up temp., min.: -45 °C
• Manufactured according to: DIN VDE 0721-52, EN 62395-1; 2007-05
• Certificates: 12ATEX1438U, IECEx EPS 12.0009U
• Classification: II 2G Ex e IIC Gb II 2D Ex tb IIIC Db
• Nominal output: 15 / 30 / 45 / 60 W/m

ELP/FEP up to 200 °C

Applications

• Vessels, piping, valves
• Building construction
• Food processing industry
• Paper industry

Technical Information

• Insulations: Fluoropolymer
• Protective braid: Nickel-plated copper
• Outer jacket: Fluoropolymer
• Nominal temperature: 200 °C
• Moisture proof
• Bending radius, min.: 25 mm
• Bus wire cross section: 2 x 1.5 mm²
• Nominal voltage: 230 V AC/DC
• Installation temp., min.: -45 °C
• Start-up temp., min.: -45 °C
• Manufactured according to: DIN VDE 0721-52, EN 62395-1; 2007-05
• Nominal output: 15 / 30 / 45 / 60 W/m
